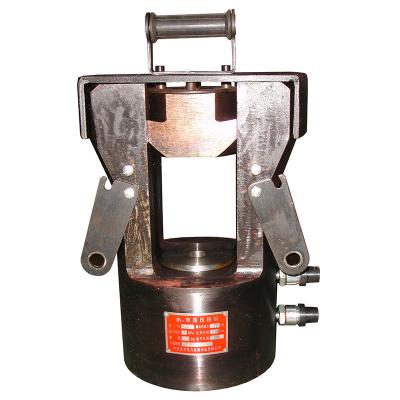

Hydraulic Compressor

Item number	Model	Maximum Compression(kN)	Maximum oil pressure (MPa)	Applicable conductor	Stroke(mm)	Weight (kg)
16103T	QY-65T	650	94	≤ACSR500	25	25
16104T	QY-125T	1250	94	≤ACSR720	25	35
16105T	QY-200T	2000	94	≤ACSR1440	25	85

．Uses: to compress conductor ,earth wire and copper- Aluminium terminal .

．Notes:

1.Operated by super high pressure hydraulic pump station, 65T compressor only have one coupling.

2. Matched compression die need to purchase additionally

3.Packaged in wooden case
